| Item | Rating |

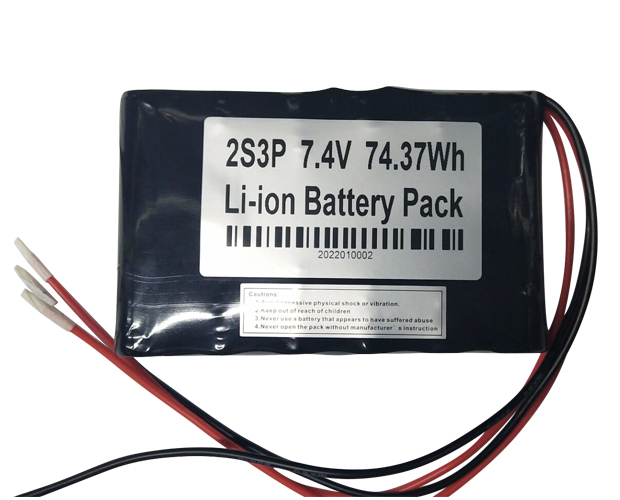

| Battery Type | Li-ion |
| Nominal Battery Voltage | 7.4V |
| Nominal Capacity | 10.05Ah |
| Nominal Energy(25℃,0.2C) | 74.37Wh |
| Maximum In Series | 2cell |
| Maximum In Parallel | 3P |
| Float Charge Voltage | 8.4V |
| Max Charge Current | 4A |
| Max Discharge Current | 4A |
| Service life | more than 500 cycles |
| Working Temperature Range | Charge: 0℃--+45℃ Discharge: -10℃--+60℃ |
| Storage Temperature | -20℃--45℃ |
| Storage Duration | 6 Months at 25℃ |
| Packing | Customized |
| Basic Solution | Over Charge Protection,Over Discharge Protection,Over Current Protection,Over Voltage Protection,Under-Voltage Protection,Temperature Protection,Short Circuit Protection |
| Dimension | L115*W70*T20mm |
| Weight | Approx.300g |
